玻璃钢负压风机

您的位置: 首页 产品中心 负压风机 玻璃钢喇叭形负压风机
产品详情

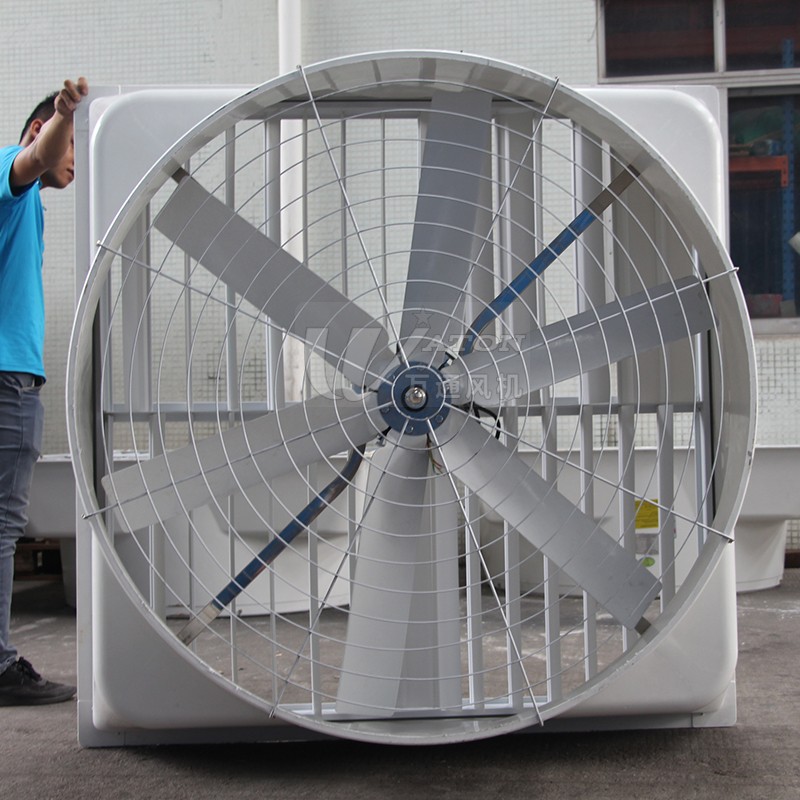

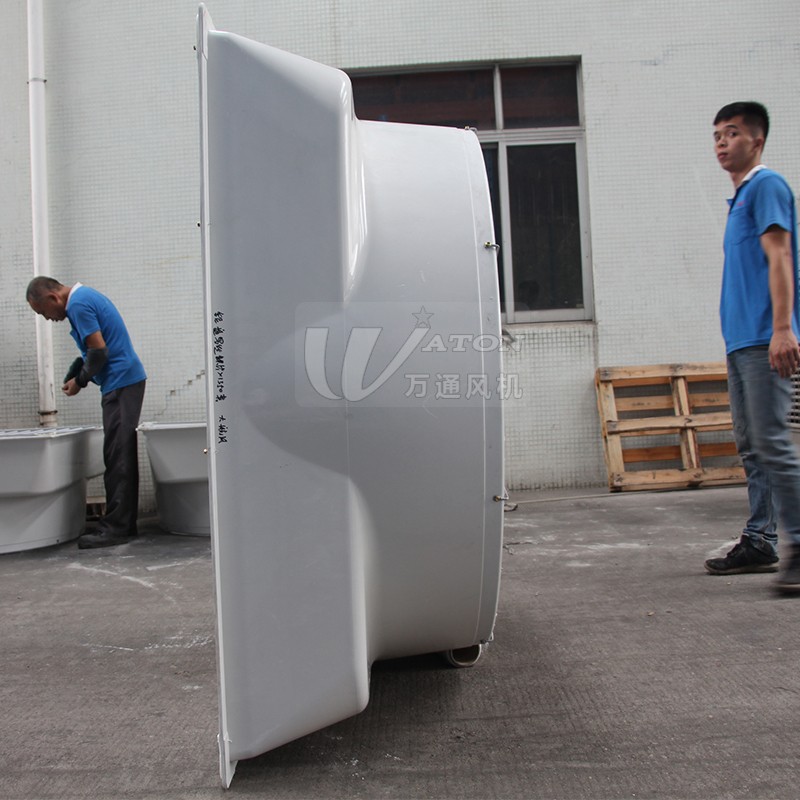

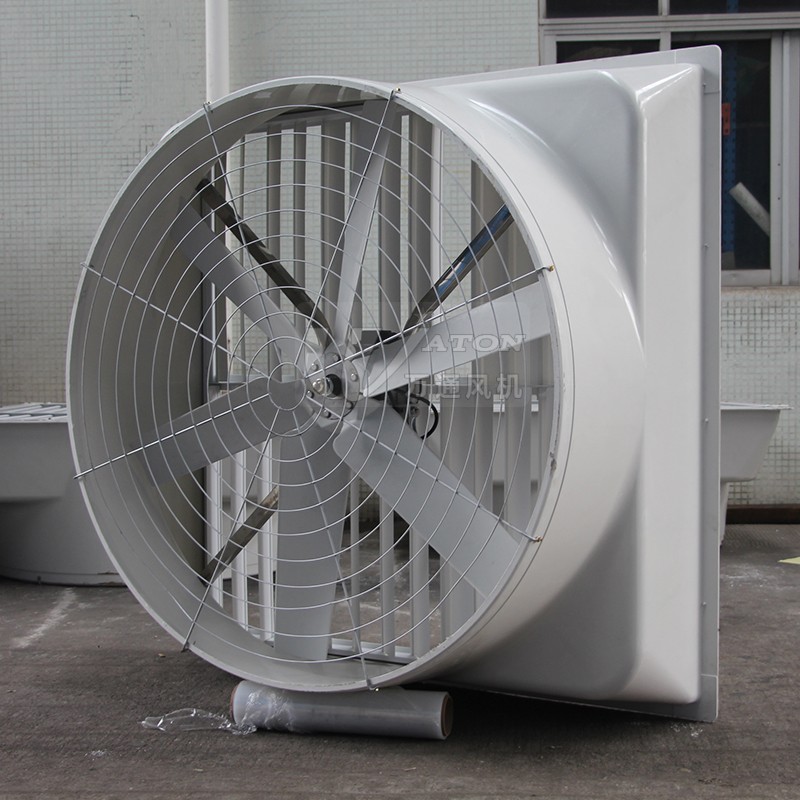

  • FRP玻璃钢喇叭型负压抽风机

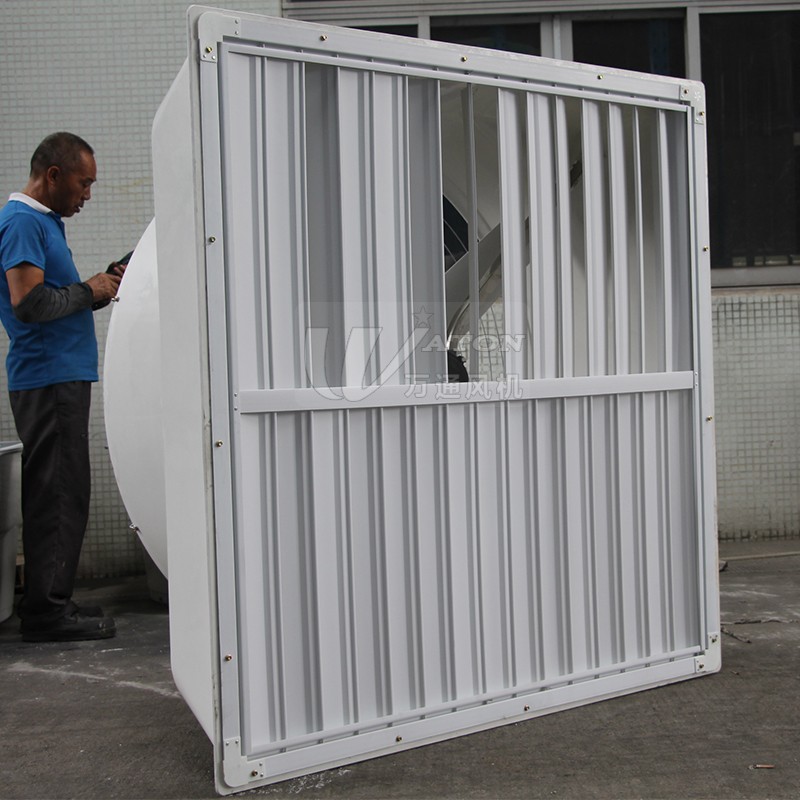

    FRP喇叭型负压风机外壳采用复合玻璃钢材质制作而成,电机、扇叶均采用优质铝合金材质。该系列风机运用负压式设计原理,将风机周边的闷热、高温气体迅速抽排。有效地区分轴流式风机轴向抽排的效果。该系列风机具有重量轻、运转平稳、机械噪音低、不易老化、耐腐性能良好、安装简便等优点。风机背面百叶窗设计利用空气顺流原理。使百叶窗能依据风机的运转状态自主开闭。
  • FRP series of axial fiber glass fan with trumpet

    The shell of FRP horn type negative pressure fan is made of composite glass steel, and both motor and fan blade are made of high quality aluminum alloy. This series of fans use the principle of negative pressure design. Themuggy and high temperature gas around the fan is quickly drained. The effect of axial flow fan shaft pumping in effective area. This series of fans have the advantages of light weight, smooth operation, low mechanical noise, easy aging, good corrosion resistance, easy installation and so on. The design of blinds on the back of the fan is designed to make use of the principle of air flow. The blinds can be opened and closed independently according to the operating state of the fan.
机 号
Model(NO)
功 率
Power(KW)
转 速
Speed(r/min)
流 量
Volume(M3/h)
噪 音
Noise db(A)
146SL 0.75 460 48000 ≥63db
126SL 0.55 560 35000 ≥60db
106SL 0.55 560 28000 ≥60db

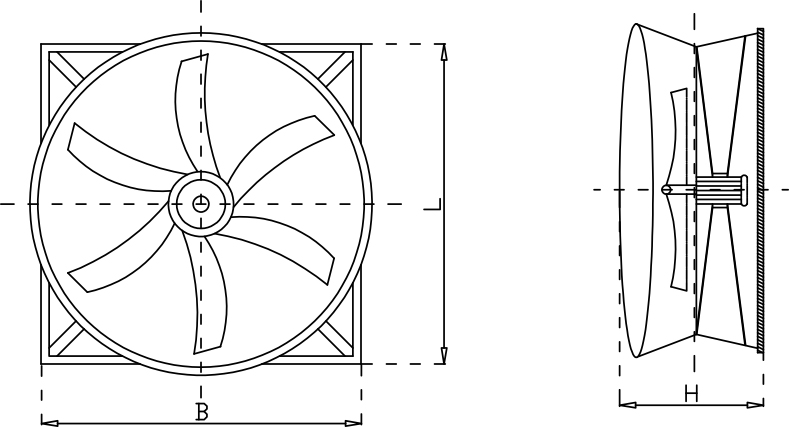

外形及安装尺寸示意图 Lnstallation size diagram

玻璃钢负压风机安装尺寸


产品为人工实物测量会有一定误差,相关数据仅作参考,以收到的实物为准。 单位Unit: mm(毫米)

机号
功率Power 外形尺寸Shape size
NO KW B L H
146SL 0.75 1460 1460 580
126SL 0.55 1260 1260 560
106SL 0.55 1060 1060 550
