防腐高压风机

您的位置: 首页 产品中心 PP塑料高压风机
防腐高压风机
  • 防腐高压风机

万通PP塑料高压离心风机 抽排电镀化工酸碱盐腐蚀气体高风压风机

  • 产品名称:PP6-30C型聚丙烯高压离心风机
    产品简介: 该系列风机参照金属6-30性能参数采用聚丙烯板,加热压模焊接而成。
    产品用途: 可输送含有一定浓度的酸、碱、盐及化学成分的腐蚀性有毒气体。
    产品优势:该系列风机具有强度高、重量轻、耐腐蚀性能好、不易老化、噪音低等特点,是一种较理想的新型防腐蚀风机。
    适用场合:广泛应用于化工、电镀、氧化、发电厂、化 验室、线路板、环保设备等含有腐蚀性气体的场所。
产品详情
  • PP6-30A型聚丙烯高压离心风机

    PP6-30A型聚丙烯高压离心风机具有强度高、重量轻、耐腐蚀性能好、不易老化、噪音低等特点,是一种较理想的新型防腐蚀风机,该系列风机适用于化工、纺织、电镀、实验室等场所排送含有一定浓度的酸、碱、盐等腐蚀性气体。不允许用来排除含芳香族化合物、脂肪族与芳香碳氢化合物的卤素衍生物、酮类等腐蚀性气体。风机使用温度为≤40℃,且避免阳光暴晒,现场附近不得有热源。
  • PP6-30A polypropylene centrifugal fan

    PP6-30(A) polypropylene high-pressure centrifugal fan has the advantages of high strength, light weight, good corrosion resistance, not easy ageing, low noise characteristics, is an ideal new anti-corrosion fan, fans of the series is suitable for chemical, textile, electroplating, laboratory and other places discharge contains a certain concentration of acid and alkali, salt and other corrosive gases. It is not allowed to remove corrosive gases, such as halogen derivatives, ketones, and other compounds containing aromatic compounds, aliphatic and aromatic hydrocarbons. Fan temperature is less than or equal to40 DEG C, and avoid the sun, near the scene without heat source.
机 号
Model(No)
功 率
Power(Kw)
转 速
Speed(r/min)
流 量
Volume(M3/h)
全 压
Pressure(Pa)
5.5A 7.5 2900 2165-7722 4460-3060
1.5 1450 1034-3690 1140-790
5.5C 7.5 2500 11845-6582 3240-2230
4 2000 1476-5266 2080-1430
6.3A 2.2 1450 1555-5545 1320-920
6.3C 11 2500 2776-9902 4260-2960
7.5 2000 2221-7922 2720-1870
7.1A 5.5 1450 2225-7937 1690-1160
7.1C 15 2000 3179-11393 3470-2380
11 1800 2861-10205 2810-1930

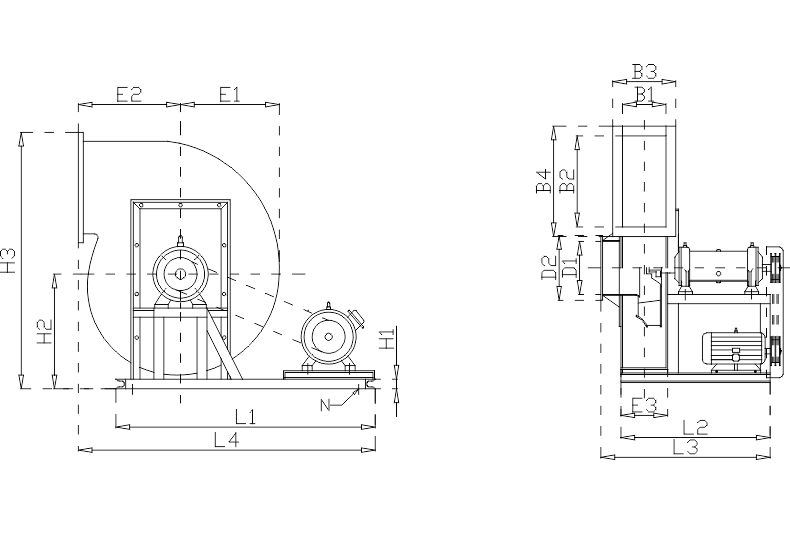

外形及安装尺寸示意图 Lnstallation size diagram
PP6-30C型聚丙烯高压离心风机安装尺寸

宝贝为人工实物测量会有一定误差,以收到的宝贝为准。 单位Unit: mm(毫米)

机号
进风口 出风口 外形尺寸 底架尺寸
NO D1 D2 B1 B2 B3 B4 E1 E2 E3 H2 H3 L3 L4 H1 L1 L2 N
5.5C 195 295 179 283 256 360 545 245 195 472 1068 530 1160 60 1107 448 M12
6.3C 240 345 237 333 314 410 597 435 202 550 1204 660 1410 60 1305 594 M12
7.1C 280 380 283 381 360 460 650 515 210 628 1340 680 1660 80 1503 740 M12
