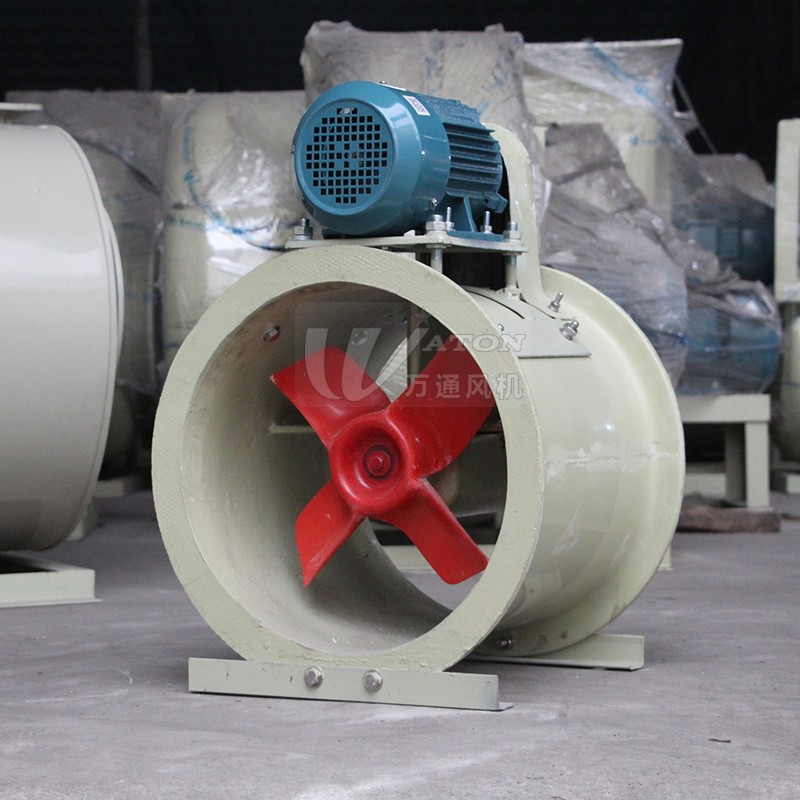

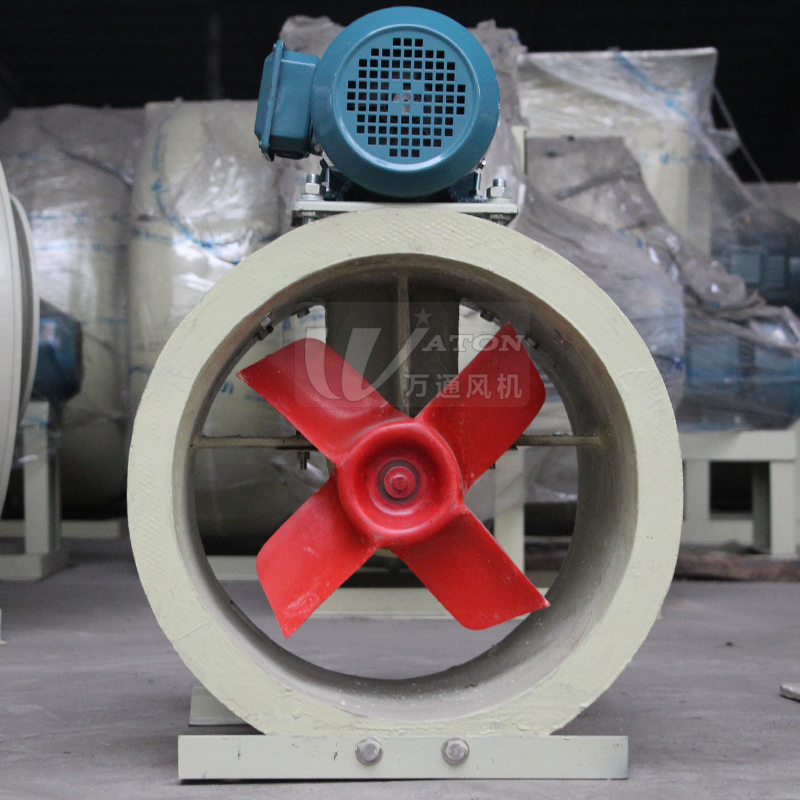

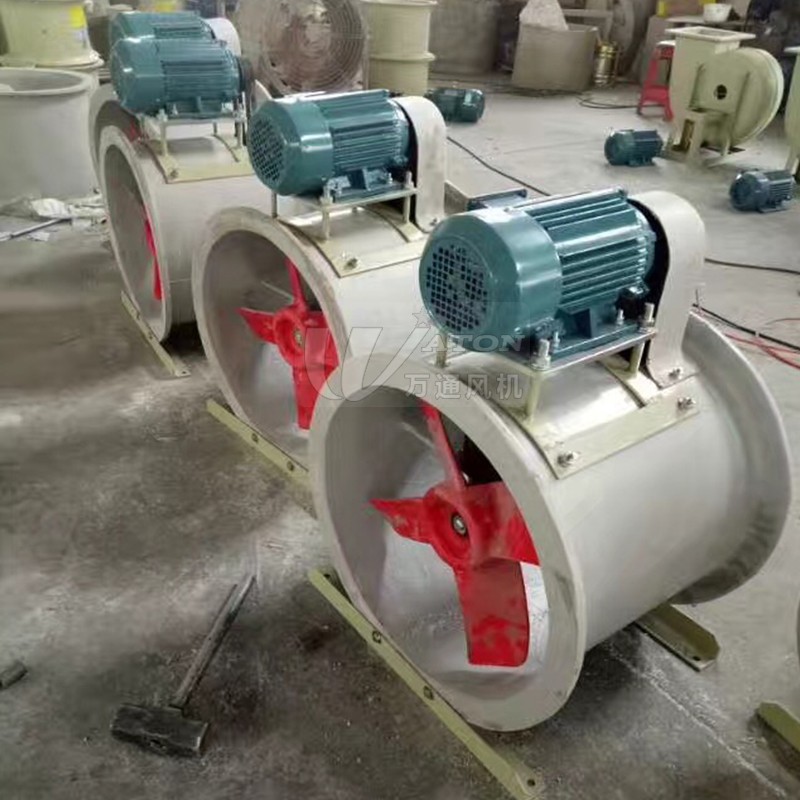

  • FT30C型玻璃钢电机外接式轴流通风机

    FT30C型玻璃钢电机外接式轴流通风机具有结构合理、设计简单、静压及效率高、防腐性能良好、噪音低、运转平稳、机械振动小、气流顺畅等特点。该系列风机电机装配在风机筒体上部,有可调的电机支承座板,采用角带传动,从而使风机所输送的各种耐腐性气体与电机隔离,保证电机使用寿命。风筒内采用外沟球面万向轴承座,具有体积小、密封性能好等到优点。该系列风机主要适用于一般工业管道串联加压、送风及排气使用。所输送气体不允许含有粘性物质、所含粉尘及硬质颗粒≤150mg/m3、气体温度≤60℃、相对湿度≤100%。
  • FT30C type FRP axial flow fan series

    The FT30C type glass fiber reinforced plastic motor external axial flow fan has the characteristics of reasonable structure, simple design, high static pressure and efficiency, good anticorrosive performance, low noise, smooth operation, small mechanical vibration and smooth flow. The series fan motor is assembled on the upper part of the fan body, with adjustable motor supporting seat plate and angular belt drive, so that all kinds of decay resistant gas conveyed by the fan can be isolated from the motor to ensurethe service life of the motor. The outer groove spherical universal bearing seat is used in the winder, which has the advantages of small volume and good sealing performance. This series of fans are mainly applicable to the series pressurization, air supply and exhaust use of general industrial pipes. The gas is not allowed to contain viscous substances, dust and hard particles is less than or equal to 150mg/m3, the gas temperature are less than 60, the relative humidity is less than 100%.
机 号
Model(No)
功 率
Power(Kw)
转 速
Speed(r/min)
流 量
Volume(M3/h)
全 压
Pressure(Pa)
3.5C 0.55 1450 2500 40
4C 0.75 1600 4000 86
0.55 1450 3500 66
5C 1.5 1600 8460 100
1.1 1450 7667 82
6C 2.2 1600 14000 179
1.5 1450 11590 123
7C 3 1450 19000 226
8C 4 1450 24500 221
9C 5.5 1450 31421 215
10C 4 960 27755 134
11.2C 7.5 960 43673 215

外形及安装尺寸示意图 Lnstallation size diagram

玻璃钢电机外接式轴流风机安装尺寸示意图

产品为人工实物测量会有一定误差,相关数据仅作参考,以收到的实物为准。 单位Unit: mm(毫米)

机 号
外形尺寸 Shape size 底架尺寸 Bottom frane size
NO D Φ1 Φ2 A1 A2 B1 B2 H1 H2 Φd
3.5C 355 380 410 220 625 400 450 290 350 12
4C 410 435 466 245 660 400 450 300 400 12
5C 555 518 608 315 868 423 467 550 600 12
6C 655 605 705 362 978 445 500 670 710 12
7C 710 735 790 408 1008 525 580 743 805 12
8C 810 850 890 458 1130 620 660 815 900 12
9C 948 905 1010 505 1300 682 745 900 995 12
10C 1010 1050 1090 580 1318 735 800 980 1090 12
